Upload a MiniMed 630G insulin pump or MiniMed 670G insulin pump

Uploading data for the first time

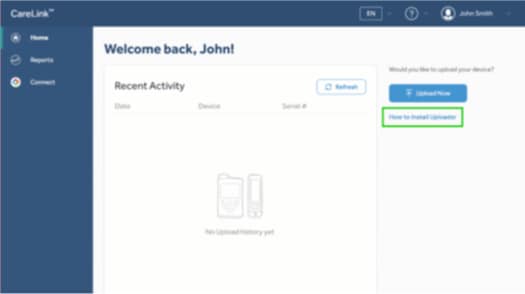

Using a compatible browser on your computer, go to the CareLink Personal website and login to your account.

CareLink Personal home screen

CareLink Personal sign in screen

If you have not installed the uploader yet, review instructions for how to install or view the video instructions for installing the uploader. Make sure that pop-up windows are not blocked.

Install uploader screen

Click on Upload Now and select Add new device.

upload now screen

select device screen

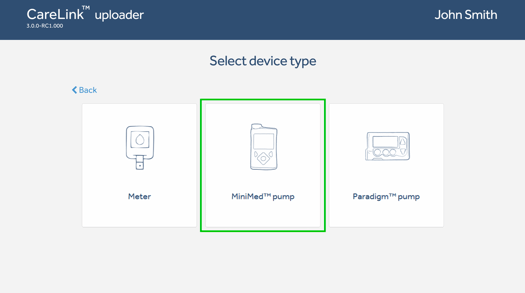

Choose MiniMed™ pump to begin the upload.

Select MiniMed pump screen

Click MiniMed™ 600 series.

Select pump type screen

Insert your black CareLink USB device or Contour Next Link 2.4 meter into the USB port of your computer. When your computer has found the device click “Next.”

connect link device screen

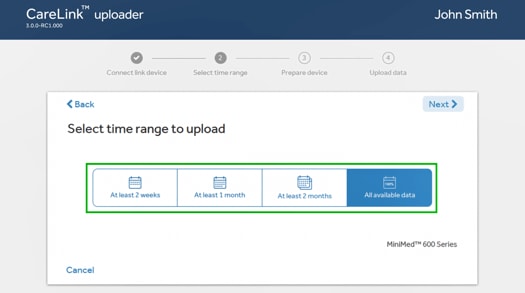

Select the time range for the data upload. A longer time range may take longer to upload.

select time range to upload screen

Make sure your pump is ready for upload. Clear active alarms, replace the battery if it is low and, if you are using a CONTOUR®NEXT LINK 2.4 meter to connect, make sure it is linked to your pump.

prepare device for data upload screen

Enter the serial number of your pump and click “Next.” You can find your serial number behind the belt clip of your pump or on the Pump Status screen.

pair the pump screen

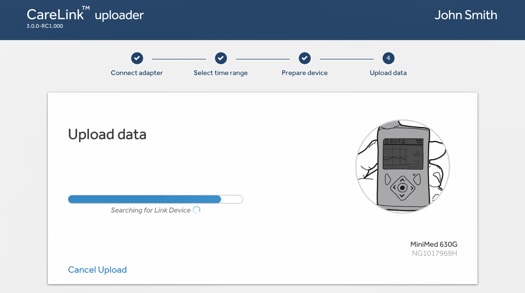

Your computer will connect to the device and begin uploading the data.

upload data screen

When your upload is complete you will get an “Upload Success” message on your computer and the upload icon will disappear from your pump’s home screen.

upload success screen
