Sensor graph with SmartGuard feature

Device: MiniMed™ 780G insulin pump

Your SmartGuard™ Auto Mode sensor graph displays your current sensor glucose (SG) reading that is wirelessly sent to your pump by your transmitter.

To view the sensor graph:

  1. From the Home screen, press the Graph button. A full-screen view of the 3-hour graph appears.

  2. Press the Up arrow to navigate to the 6-hour, 12-hour, and 24-hour graphs.

  3. Press the Left arrow to view SG readings and event details.

  4. To exit the full-screen view, press the Back button or press the Graph button again.

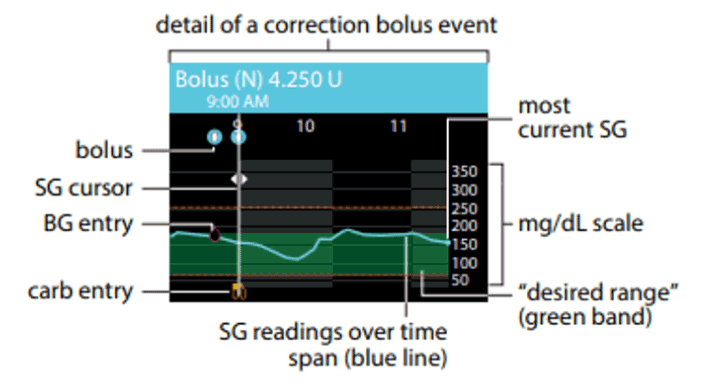

Detail of a correction bolus screen

The SmartGuard™ feature sensor graph includes the following information:

  • When a location on the graph is selected, specific details of the SG or event appear, such as a correction bolus.

  • Historical SG readings are displayed for the last 3-hour, 6-hour, 12-hour, or 24-hour periods. They appear as a blue line across the screen.

  • Boluses are shown as white vials inside blue circles.

  • Carb entries are shown as yellow knife and fork symbols. These represent any bolus amounts that include a carb entry.

  • BG entries appear as red drop symbols. Magenta bands across the top represent auto basal deliveries provided by the SmartGuard feature.

  • Blue vertical bars at the top represent auto correction boluses delivered by the SmartGuard feature.

  • A time change event appears as a white clock symbol.

  • Temp target is shown as green runners.
