Reading Your Device Screen


Device: MiniMed 770G Insulin Pump

Home Screen

The Home screen appears by default after you change the battery, when you wake the pump from sleep mode, and when you are not actively using another screen. Note, your home screen will look different when using continuous glucose monitoring or SmartGuard Auto Mode.

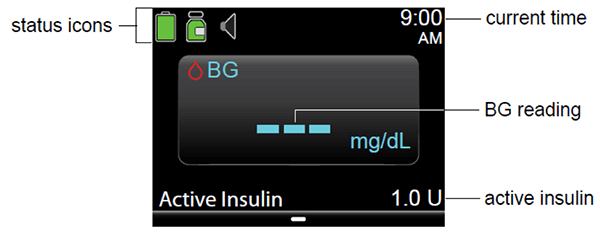

Home screen

Item Description
Status icons Displays icons that show how a quick status of your pump system.
Current time Displays the current time of day.
BG meter readings The pump shows the blood glucose (BG) meter readings from your Accu-Chek® Guide Link meter or the BG meter readings you have entered manually. The pump only shows BG meter readings taken within the last 12 minutes.

You can enter your BG meter reading manually using the Enter BG feature, Event Markers feature, or when you use the Bolus Wizard feature to deliver a bolus.

Active Insulin Displays the amount of bolus insulin the pump estimates is still working to lower your blood glucose levels.

Status icons

The status icons appear at the top of the Home screen to provide a way for you to quickly check the status of your system. The status icons are described in the following table.

Icon Icon name What it means
Battery icon Battery The color and fill level of the battery icon indicate the charge level of your pump battery. When a new battery is inserted and your battery is full, the icon is solid green indicating that approximately 100% of your battery capacity remains. In most cases, you can expect at least 7 days of use remaining. As the battery life is used, the icon changes from solid green to black with a red outline, indicating that the charge level of your battery is decreasing from 100% to 0%. When your battery is low, the icon has a single red bar indicating that under typical use you have up to 10 hours of use remaining. When your battery needs to be replaced immediately, the icon is solid black with a red outline, indicating you have less than 30 minutes of use remaining.

Battery charge level icons

Reservoir icon Reservoir

Shows the approximate amount of insulin left in your reservoir. The color and the fill level of the icon indicate the status. The reservoir icon is representative of the 3.0 mL (300-unit) MiniMed reservoir. When your reservoir is full, the icon is solid green. As your insulin is used, the icon becomes emptier and the color of the icon changes.

85-100% remaining icon approximately 85-100% remaining

71/84% remaining icon approximately 71/84% remaining

57-70% remaining icon approximately 57-70% remaining

43-56% remaining icon approximately 43-56% remaining

29-42% remaining icon approximately 29-42% remaining

15-28% remaining icon approximately 15-28% remaining

1-14% remaining icon approximately 1-14% remaining

amount remaining unknown icon the amount remaining is unknown

audio icon Audio Shows the audio mode you are using: vibrate only, audio only or vibrate and audio.

vibrate only icon   audio only icon   vibrate and audio icon

When the Alert Silence feature is turned on, the audio mode icons appear with an additional notation of a music note with a line through it:

vibrate only icon with alert silence on   audio only icon with alert silence on   vibrate and audio icon with alert silence on

Block mode icon Block Mode Appears when the pump is in Block Mode, and that certain functions are restricted. Block Mode to restricts access to critical pump settings.
Temporary network connection icon Temporary Network Connection Appears while you are temporarily connected to a remote upload device.
