Reading Your Sensor Graphs

Device: MiniMed 530G® (551/751), Revel™ (523/723), 522/722, Guardian

[Getting Started with Continuous Glucose Monitoring for the MiniMed 530G System page 4; Revel Getting Started Guide page 14; X22 Getting Started Guide page 11; Guardian Getting Started Guide page 13]

Your insulin pump/CGM monitor shows a real-time glucose measurement generated by data sent from the glucose sensor to the transmitter, and then to the insulin pump/CGM monitor every 5 minutes. The insulin pump/CGM monitor converts these measurements to trend graphs.

For MiniMed 530G (551/751), Revel (523/723), Guardian

Your insulin pump/CGM monitor screen displays 3-hour, 6-hour, 12-hour, and 24-hour glucose trend graphs. Press ESC once from the HOME Screen to display the most recently viewed trend graph. Press UP arrow to display other graphs.

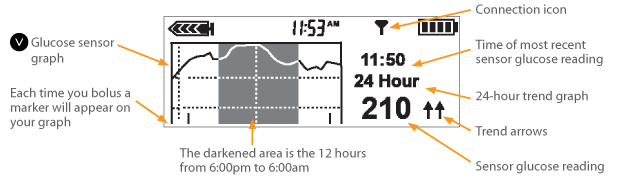

Revel Screen Display

Press DOWN arrow to view individual sensor glucose readings on the graph.

Revel Sensor Icon Table

For 522/722

Your insulin pump/CGM monitor screen displays 3-hour and 24-hour glucose trend graphs. Press ESC once from the HOME Screen to display the 3-hour trend graph. Press ESC twice to display the 24-hour trend graph.

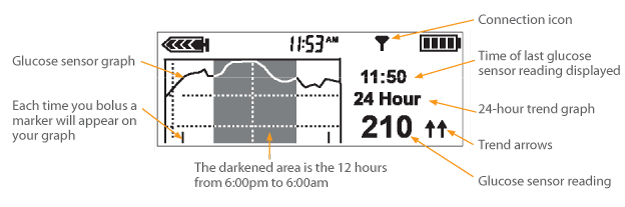

522/722 Screen Display

To view historical glucose sensor readings press the UP arrow and DOWN arrow buttons on your insulin pump or CGM monitor. The 3-hour trend graph will display readings in 5 minute increments and the 24-hour trend graph will display readings in 20 minute increments.

522/722 Sensor Icon Table
