Reading your device screen


Device: MiniMed™ 670G insulin pump (MMT-1780K)

Home Screen

The Home screen appears by default after you change the battery, when you wake the pump from sleep mode, and when you are not actively using another screen.

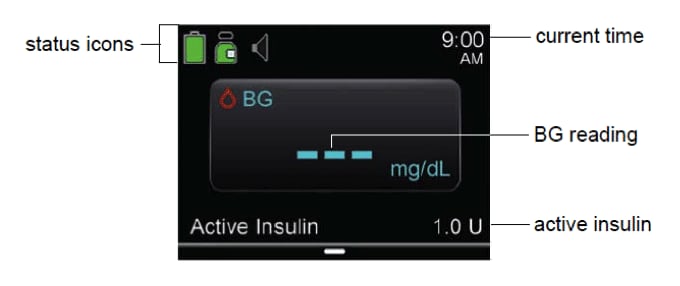

Home screen image

The following items appear on your Home screen:

Item Description
Status icons Displays icons that show how a quick status of your pump system.
Current time Displays the current time of day.
BG meter readings If you have taken a BG meter reading using your CONTOUR NEXT LINK 2.4 meter or manually entered a BG meter reading within the last 12 minutes, the BG meter reading appears on the Home screen.

You can enter your BG meter reading manually using the Enter BG feature, Event markers feature, or when you see the Bolus Wizard to deliver a bolus.

Active Insulin Displays the amount of bolus insulin the pump estimates is still working to lower your blood glucose levels.

Status icons

The status icons appear at the top of the Home screen to provide a way for you to quickly check the status of your system. The status icons are described in the following table.

Icon Icon name What it means
Battery icon Battery The color and fill level of the battery icon indicate the charge level of your pump battery. When a new battery is inserted and your battery is full, the icon is solid green indicating that approximately 100% of your battery capacity remains. In most cases, you can expect at least 7 days of use remaining. As the battery life is used, the icon changes from solid green to black with a red outline, indicating that the charge level of your battery is decreasing from 100% to 0%. When your battery is low, the icon has a single red bar indicating that under typical use you have up to 10 hours of use remaining. When your battery needs to be replaced immediately, the icon is solid black with a red outline, indicating you have less than 30 minutes of use remaining.

Battery icons

Reservoir icon Reservoir

Shows the approximate amount of insulin left in your reservoir. The color and the fill level of the icon indicate the status. When your reservoir is full, the icon is solid green. As your insulin is used, the icon becomes emptier and the color of the icon changes.

85-100 percent reservoir icon approximately 85-100% remaining

71-84 percent reservoir icon approximately 71-84% remaining

57-70 percent reservoir icon approximately 57-70% remaining

43-56 percent reservoir icon approximately 43-56% remaining

29-42 percent reservoir icon approximately 29-42% remaining

15-28 percent reservoir icon approximately 15-28% remaining

1-14 percent reservoir icon approximately 1-14% remaining

unknown amount reservoir icon the amount remaining is unknown

Audio icon Audio Shows the audio mode you are using: vibrate only, audio only or vibrate and audio.

Vibrate audio icons

When the Alert Silence feature is turned on, the audio mode icons appear with an additional notation of a music note with a line through it:

Alert silence icons

Block Mode icon Block Mode Appears when the pump is in Block Mode, and that certain functions are restricted. Block Mode to restricts access to critical pump settings.
Airplane Mode icon Airplane Mode The Airplane Mode icon appears in place of the Connection icon if Airplane Mode is turned on. When Airplane Mode is turned on, the pump cannot receive wireless communication from other devices.
Temporary Network Connection icon Temporary Network Connection Appears while you are temporarily connected to a remote upload device.
