Pump Buttons

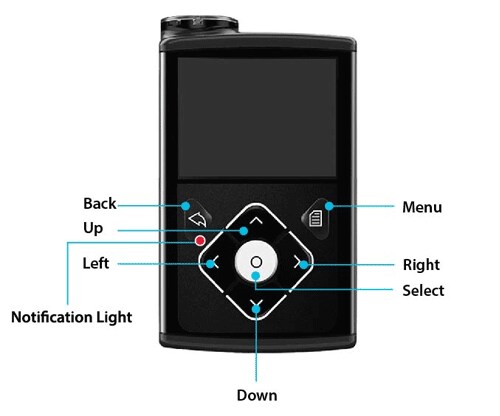

The following picture shows the buttons, the notification light, and the light sensor on your pump. The notification light flashes when your pump has an alarm or alert. The notification light is not visible unless flashing. The keypad has a backlight that lights up the buttons when in use.

To do this: Follow these steps:
Scroll up or down a menu or list, or increase or decrease the value of a setting. Press the (up) or (down) buttons.
Select an item on a screen or menu. Press the (up), (down), (left), or (right) buttons to select the desired item, and then press the (select) button.
Enter a value into a field. Press the (up), (down), (left), or (right) buttons to select the desired item, and then press the (select) button. The field you select flashes. Press the (up) or (down) buttons to enter the desired value, and then press the button
Return to the previous screen. Press the (back) button.
Display the Menu screen. Press the (menu) button.
Display the Home screen. When you are on any screen other than the Home screen, press and hold the (back) button for about one second.
Put the pump in sleep mode. Press and hold (menu) for about two seconds.
Wake up the pump. Press any button.
