Linking Your Pump to a Meter

Device: MiniMed® 530G (551/751), Revel (523/723), 522/722, Guardian, 515/715, 512/712

[MiniMed 530G User Guide 149- 150;Revel User Guide page 149-150; X22 User Guide
page 84-85; Guardian User Guide page 48-49; X15 User Guide page 77-78, X12 User
Guide Page 59-60]

Your insulin pump is originally set with the meter option turned OFF. You can set up your pump to wirelessly receive your blood glucose (BG) reading from specifically linked BG meters. With the meter option turned on, you may add or delete up to three meter IDs. Programming your meter’s unique ID (the serial number on the back of it) links your insulin pump to the meter.

Note: Before linking your BG meter to your insulin pump:

  • Your insulin pump and BG meter must be within 4 feet (1.2 meters) of each other.
  • Be sure that your insulin pump is not delivering a bolus when you attempt to connect the meter.
Linking Your MiniMed 530G (551/751)

Important: If you use a glucose sensor, take note of your meter communication settings.
Make sure not to accept a reading for calibration on your pump when your BG is not stable.

  1. Go to the METER OPTION Screen
  2. Select ON and press ACT.
  3. Add, delete or review your meter ID(s) as desired following the screen prompts

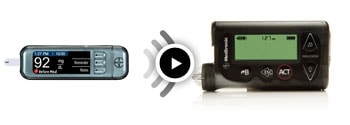

Note: Watch this how-to video for instructions on linking your meter to a MiniMed 530G insulin pump.

Linking Your Revel (523/723) to Your Meter

Important: If you use a glucose sensor, take note of your meter communication settings.
Make sure not to accept a reading for calibration on your pump when your BG is not stable.

  1. Go to the METER OPTION Screen
  2. Select ON and press ACT.
  3. Add, delete or review your meter ID(s) as desired following the screen prompts

Note: Watch this how-to video for instructions on linking your meter to a Paradigm® Revel™ insulin pump. For more detailed instructions, visit myLearning.

Linking Your Guardian or 522/722 to Your Meter

Important: If you use a glucose sensor, take note of your meter communication settings.

  1. Go to the METER OPTION Screen
  2. Select ON and press ACT.
  3. Add, delete or review your meter ID(s) as desired following the screen prompts
Linking Your 515/715 or 512/712 to Your Meter
  1. Go to the METER OPTION Screen
  2. Select ON and press ACT.
  3. Add, delete or review your meter ID(s) as desired following the screen prompts

940M10399-011 20120904
