Pump Buttons


Device: MiniMed® 670G (1780)

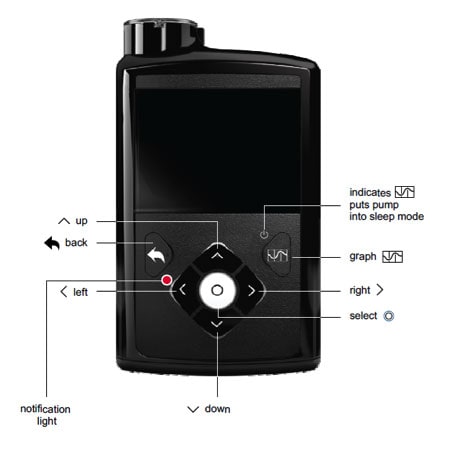

The following image shows the buttons and the notification light on your pump. The notification light flashes when your pump has an alarm or alert. The notification light is not visible unless flashing.

Use the following table to see the description on how to use each of the buttons:

To do this: Follow these steps:
Display the menu. From the Home screen, press the button.
Scroll up or down a menu or list, or increase or decrease the value of a setting. Press the or buttons.
Select an item on a screen or menu. Press the , , , or buttons to select the desired item, and then press the button.
Enter a value into a field. Press the , , , or buttons to select the desired item, and then press the button. The field you select flashes. Press the (up) or buttons to enter the desired value, and then press the button
Return to the previous screen. Press the button.
Display the Home screen. Press and hold the button to the Home screen.
Put the pump in sleep mode. Press and hold button.
Wake up the pump. Press any button.
